立式加工中心

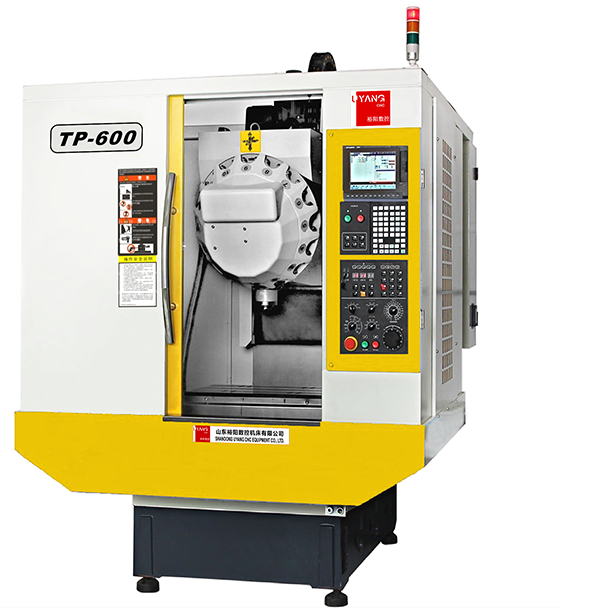

TP600 / TP700 / TP1000數控鉆攻中心是一種切削金屬的機床。又俗稱“鉆銑中心”、“鉆攻中心”。這種機床是目前市場上效率最高、精度最高的機床之一。數控鉆攻中心是在傳統立式加工中心基礎上發展而來的。主要用于加工輕、小金屬工件,不適合重型切削配置。尤其適用于汽車、醫療設備、儀器儀表、航空航天及電子產品的批量生產。

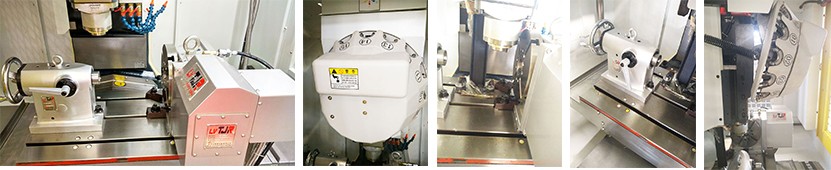

特點:
?床身結構堅固,能承受高G運動產生的慣量;
?高速靜音絲桿,靜音線軌使熱變位少、精度高;
?直聯高速主軸反應快,鉆孔攻牙效率大大提高:
?三軸高速位移,可節省大量非加工時間;
?加高立柱設計,預留安裝第四軸空間:
?進口三軸護罩保護絲桿線軌提高機床使用壽命;
?空調系統冷卻能力保證氣溫高季節機床合適溫度,延長機床壽命;
?前拉門和兩側門玻璃均為厚夾膠鋼化玻璃,提高安全性
技術參數 |
Specification |
Unit |
TP600 |
TP700 |
TP1000 |
工作臺尺寸 |
Worktable size |
Mm |
400×600 |
400×700 |
500×1000 |
T型槽 |
T-slot(No.×Width×Pitch) |
Mm |
3×14×100 |
3×14×100 |
3×18×150 |
工作臺承重 |
Table load |
Kg |
250 |
250 |
500 |
導軌形式 |
Guide way |
|
Linear guide |
Linear guide |
Linear guide |
X/Y/Z軸行程 |
Travel (X/Y/Z) |
Mm |
600 / 400 / 300 |
500 / 400 / 300 |
800 / 500 / 400 |
主軸中心到工作臺距離 |
Distance from spindle to worktable |
Mm |
150-450 |
150-445 |
150-550 |
主軸中心到立柱距離 |
Distance from spindle to column |
mm |
450 |
450 |
550 |
主軸錐度 |
Spindle taper |
|
BT30 |
BT30 |
BT30 |
主軸轉速 |
Speed of spindle |
rpm |
12000, 15000, 20000, 24000 |
12000, 15000, 20000 |
12000, 15000, 20000 |
主軸驅動形式 |
Spindle drive |
|
Direct connection |
Direct connection |
Direct connection |
主軸電機 |
Spindle motor |
kw |
5.5 |
5.5. |
5.5 |
X/Y/Z軸快移速度 |
X/Y/Z axis rapid feed speed |
mm/min |
48/48/48 |
48/48/48 |
48/48/48 |
切削速度 |
Cutting feed speed |
mm/min |
0-12 |
0-12 |
0-12 |
刀庫形式 |
Magazine type |
|
Armless type |
Armless type |
Armless type |
刀庫容量 |
Magazine capacity |
|
BT30-16T |
BT30-16T |
BT30-16T |
定位精度 |
Positioning accuracy |
Mm |
±0.005 |
±0.005 |
±0.005 |
重復定位精度 |
Repositioning accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
機床尺寸 |
Machine dimension (LxWxH) |
mm |
1980x2210x2350 |
2260x2250x2350 |
2060x2580x2450 |
機床重量 |
Machine weight (N.W./ G.W.) |
t |
3.0/3.4 |
3.3/3.7 |
3.9/4.5 |
