三軸線軌高速加工中心

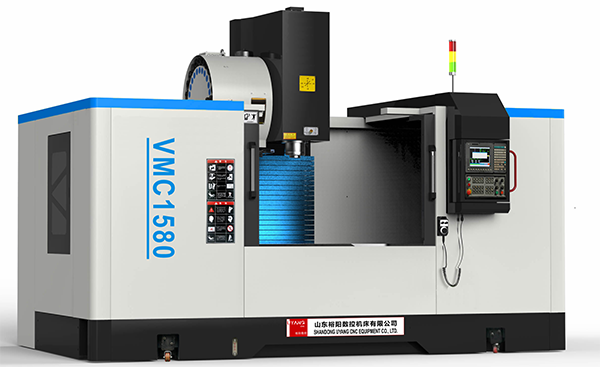

VMC1380 & VMC1580 是一款高精度,高性能三軸線軌加工中心,具有良好的主軸性能。能夠?qū)崿F(xiàn)對各種盤類、板類、殼體、模具等復雜零件在一次裝夾中完成鉆、銑、鏜、擴、鉸、攻絲等多種工序加工,適合于小型零件的高效加工制造,對復雜、高精度零件的加工更顯其優越性。

機床優點:

?主要基礎件采用高剛性的鑄鐵結構,保證了基礎件的高剛性和抗彎減震性能.

?三軸進口滾柱線性導軌,高速位移,節省時間

?臺灣知名品牌高精度高強度的滾珠絲杠,無背隙,使用激光干涉儀檢測,保證機床的定位精度。

?采用臺灣知名品牌高速、高精度、高剛性主軸單元,軸向和徑向承載能力強,

?機床外防護采用全封閉結構設計,安全可靠


基本配置

廣數GSK218M數控系統

機械手刀庫

主軸吹氣系統

冷卻系統

自動潤滑系統

氣動系統

工作燈

三色報警燈

移動手脈

機床墊鐵

全防護罩

Standard Accessories:

GSK218M controller

Arm Tool Magazine (24T)

Air blast system

Auto Cooling system

Auto Lubrication system

Pneumatic system;

Working light

Tri-color alarm lamp

MPG

Sizing blocks

Full splash guard

可選配置:

Fanuc,Siemens等其他系統

第四軸旋轉工作臺

機械手刀庫

12000rpm直連主軸帶油冷

鏈式排屑機

主軸中心出水

Optional Accessories:

Fanuc,Siemens or other controller;

4-th axis rotary table

Arm type Tool magazine (24T)

12000rpm Direct Spindle with Oil cooling system

Chain type chip conveyor

Water through spindle



技術參數

SPECIFICATIONS

UNIT

VMC1380

VMC1580

工作臺尺寸

Table size

mm

1400×800

1700×800

X/Y/Z行程

X/Y/Z Travel

mm

1800/800/700

1500/800/700

主軸鼻端到工作臺距離

Distance from spindle to worktable

mm

100-800

170-870

主軸中心到立柱距離

Distance from spindle to column

mm

850

850

T型槽

T-slot (No.×width×pitch)

mm

5-18×135

5-22×135

工作臺承重

Max. table loading

KG

1200

1800

主軸轉速

Max speed of spindle

rpm

8000

8000

主電機功率

Main motor

kw

15/18.5

15/18.5

主軸錐度

Spindle taper

BT40/BT50

BT40/BT50

主軸傳動形式

Spindle drive

Belt / Direct drive

Belt / Direct drive

X/Y/Z快移速度

X/Y/Z Rapid feeding

m/min

32×32×32

32×32×32

X/Y/Z 進給速度

X/Y/Z cutting feed rate

m/min

10×10×10

10×10×10

X/Y/Z 進給電機扭矩

X/Y/Z feed motor torque

NM

26/26/26

26/26/26

刀庫容量

Magazine capacity

24T

24T

定位精度

Positioning accuracy

mm

±0.005/300

±0.005/300

重復定位精度

Repositioning accuracy

mm

±0.003/300

±0.003/300

機床尺寸

Machine size

mm

3900×3500×3250

4500×3600×3350

機床重量

Weight

t

9.6

13.5
