立式加工中心

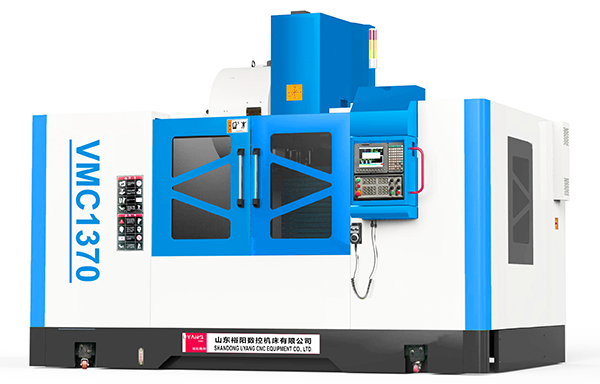

VMC1270 & VMC1370 是一款高精度,高性能三軸線軌加工中心,具有良好的主軸性能。能夠實現對各種盤類、板類、殼體、模具等復雜零件在一次裝夾中完成鉆、銑、鏜、擴、鉸、攻絲等多種工序加工,適合于小型零件的高效加工制造,對復雜、高精度零件的加工更顯其優越性。
機床優點:
?主要基礎件采用高剛性的鑄鐵結構,保證了基礎件的高剛性和抗彎減震性能.
?三軸進口滾柱線性導軌,高速位移,節省時間
?臺灣知名品牌高精度高強度的滾珠絲杠,無背隙,使用激光干涉儀檢測,保證機床的定位精度。
?采用臺灣知名品牌高速、高精度、高剛性主軸單元,軸向和徑向承載能力強,
?機床外防護采用全封閉結構設計,安全可靠
基本配置 廣數GSK218M數控系統 機械手刀庫 主軸吹氣系統 冷卻系統 自動潤滑系統 氣動系統 工作燈 三色報警燈 移動手脈 機床墊鐵 全防護罩 |
Standard Accessories: GSK218M controller Arm Tool Magazine (24T) Air blast system Auto Cooling system Auto Lubrication system Pneumatic system; Working light Tri-color alarm lamp MPG Sizing blocks Full splash guard |
可選配置: Fanuc,Siemens等其他系統 第四軸旋轉工作臺 機械手刀庫 12000rpm直連主軸帶油冷 鏈式排屑機 主軸中心出水 |
Optional Accessories: Fanuc,Siemens or other controller; 4-th axis rotary table Arm type Tool magazine (24T) 12000rpm Direct Spindle with Oil cooling system Chain type chip conveyor Water through spindle |
技術參數 |
SPECIFICATIONS |
UNIT |
VMC1270 |
VMC1370 |
工作臺尺寸 |
Table size |
mm |
1300×700 |
1400×700 |
X/Y/Z行程 |
X/Y/Z Travel |
mm |
1200/700/700 |
1300/700/700 |
主軸鼻端到工作臺距離 |
Distance from spindle to worktable |
mm |
120-760 |
120-810 |
主軸中心到立柱距離 |
Distance from spindle to column |
mm |
750 |
750 |
T型槽 |
T-slot (No.×width×pitch) |
mm |
5-18×120 |
5-18×120 |
工作臺承重 |
Max. table loading |
mm |
10000 |
1000 |
主軸轉速 |
Max speed of spindle |
rpm |
8000 |
8000 |
主電機功率 |
Main motor |
kw |
11/15 |
15/18.5 |
主軸錐度 |
Spindle taper |
|
BT40/BT50 |
BT40/BT50 |
主軸傳動形式 |
Spindle drive |
|
Belt / Direct drive |
Belt / Direct drive |
X/Y/Z快移速度 |
X/Y/Z Rapid feeding |
m/min |
36×36×36 |
36×36×36 |
X/Y/Z 進給速度 |
X/Y/Z cutting feed rate |
m/min |
10×10×10 |
10×10×10 |
X/Y/Z 進給電機扭矩 |
X/Y/Z feed motor torque |
NM |
22/22/22 |
22/22/22 |
刀庫容量 |
Magazine capacity |
|
24T |
24T |
定位精度 |
Positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
重復定位精度 |
Repositioning accuracy |
mm |
±0.003/300 |
±0.003/300 |
機床尺寸 |
Machine size |
mm |
3400×3200×2850 |
3500×3400×3150 |
機床重量 |
Weight |
t |
7.8 |
8.5 |
